一般工业
General Industry
积放式/程控行车式输送链
Accumulating/programmable hoist coating production line
Accumulating/programmable hoist coating production line
积放式/程控行车输送链是一种先进输送和控制系统，通过合理配置和优化，可实现连续、高效的输送，产品具有高效灵活、输送稳定、节拍式生产、安全缓存、承载力强等特点被广泛应用。
Accumulating/programmable hoist conveyor system is an advanced transportation and control system that enables continuous and efficient conveying through optimized configuration. Featuring high efficiency, flexibility, stable transportation, rhythmic production, safe buffering, and strong load capacity, it is widely used across various industries.
产品名称
Production Line
Production Line
涂装类型
Coating Type
Coating Type
行业分别
Industry
Industry
运行方式
Operation Mode
Operation Mode
吊挂范围
Hanging Range
Hanging Range
前处理形式
Pretreatment Methods
Pretreatment Methods
炉子形式
Furnace Type
Furnace Type
工艺流程
Process Flow
Process Flow
积放式输送涂装线

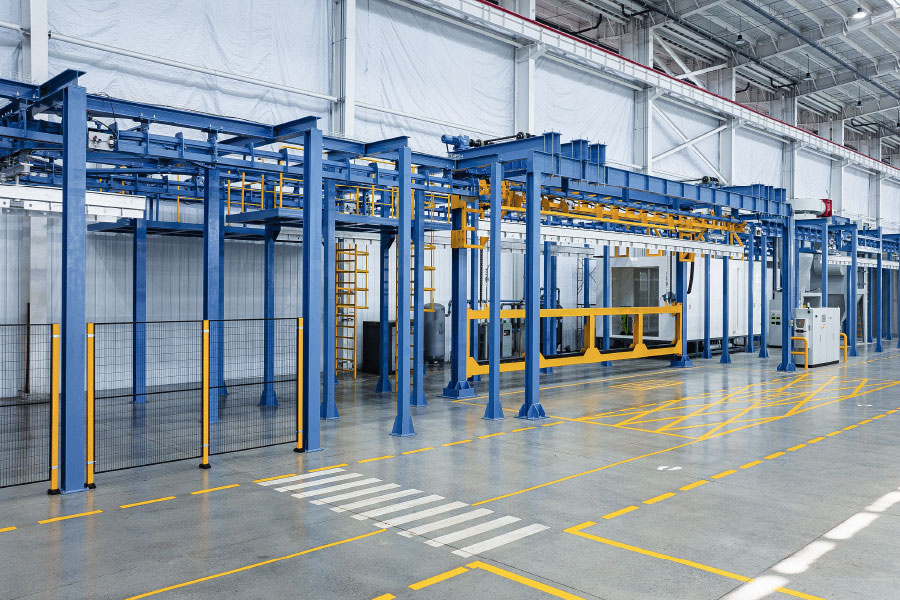

Accumulating conveyor coating line
Accumulating conveyor coating line
粉末/油漆/电泳
Powder/Paint/Electrophoresis
Powder/Paint/Electrophoresis
汽车、钢构、工程机械、结构件、重型件
Automotive, steel structures, construction machinery, structural components, heavy parts
Automotive, steel structures, construction machinery, structural components, heavy parts
节拍式、步进式
Rhythmic type, stepping type
Rhythmic type, stepping type
尺寸范围大、产品品类多、同品类数量少
Large size range, extensive product categories, small quantities per category
Large size range, extensive product categories, small quantities per category
适合通过式、节拍式、浸入式
Continuous flow, beat rhythm, immersion
Continuous flow, beat rhythm, immersion
积放平炉侧开为主或通过式平炉
Accumulator flat furnace with side opening as the main feature or pass-through flat furnace
Accumulator flat furnace with side opening as the main feature or pass-through flat furnace
上件→前处理(水洗1→预脱脂→主脱脂1→主脱脂2→水洗2→水洗3→纯水洗1→钝化→纯水洗2)→(氧化)电泳→超滤1→超滤2→超滤3→水洗→纯水洗3→滴水→烘干固化→冷却→下件→包装
loading→pretreatment (rinsing 1→pre-degreasing→main degreasing 1→main degreasing 2→rinsing 2→rinsing 3→pure rinsing 1→passivation→pure rinsing 2)→(oxidation)electrophoresis→ultrafiltration 1→ultrafiltration 2→ultrafiltration 3→rinsing→pure rinsing 3→drip drying→baking and curing→cooling→unloading→packaging
loading→pretreatment (rinsing 1→pre-degreasing→main degreasing 1→main degreasing 2→rinsing 2→rinsing 3→pure rinsing 1→passivation→pure rinsing 2)→(oxidation)electrophoresis→ultrafiltration 1→ultrafiltration 2→ultrafiltration 3→rinsing→pure rinsing 3→drip drying→baking and curing→cooling→unloading→packaging
程控行车式涂装生产线

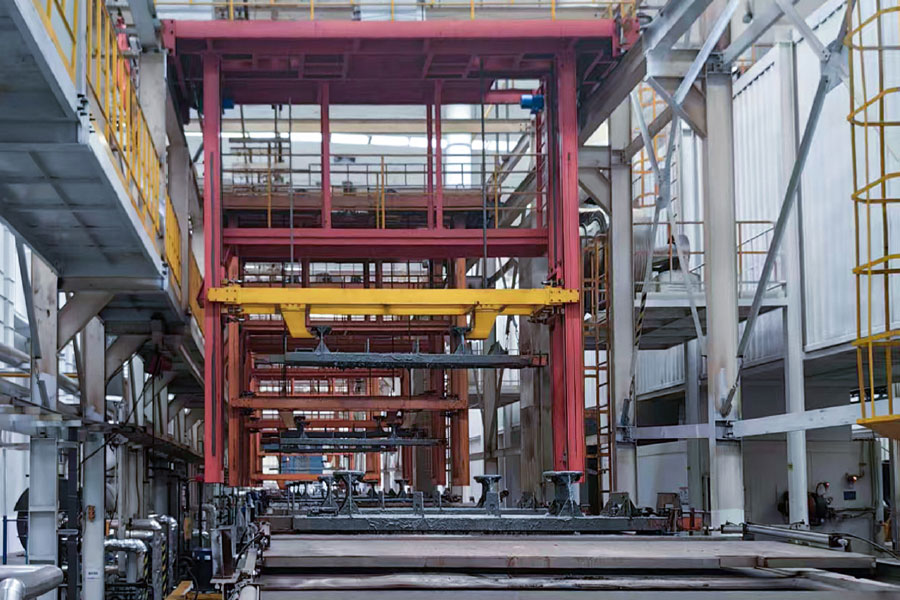

Programmable hoist coating production line
Programmable hoist coating production line
粉末/油漆/电泳
Powder/Paint/Electrophoresis
Powder/Paint/Electrophoresis
浸入式处理行业
Immersion treatment industry
Immersion treatment industry
节拍式、步进式
Rhythmic type, stepping type
Rhythmic type, stepping type
工件统一、大数量、少品类
Standardized workpieces, high volume, few categories
Standardized workpieces, high volume, few categories
适合浸入式
Suitable for immersion
Suitable for immersion
平炉顶开为主
Flat furnace with top opening as the main feature
Flat furnace with top opening as the main feature
上件→前处理(水洗1→预脱脂→主脱脂1→主脱脂2→水洗2→水洗3→纯水洗1→钝化→纯水洗2)→滴水→烘干→冷却→粉末喷涂(人工+自动)→固化→冷却→下件→包装
loading→pretreatment (rinsing 1→pre-degreasing→main degreasing 1→main degreasing 2→rinsing 2→rinsing 3→pure rinsing 1→passivation→pure rinsing 2)→(oxidation)electrophoresis→ultrafiltration 1→ultrafiltration 2→ultrafiltration 3→rinsing→pure rinsing 3→drip drying→baking and curing→cooling→unloading→packaging
loading→pretreatment (rinsing 1→pre-degreasing→main degreasing 1→main degreasing 2→rinsing 2→rinsing 3→pure rinsing 1→passivation→pure rinsing 2)→(oxidation)electrophoresis→ultrafiltration 1→ultrafiltration 2→ultrafiltration 3→rinsing→pure rinsing 3→drip drying→baking and curing→cooling→unloading→packaging
