铝型材/工业材
Aluminum Profile / Industrial Material

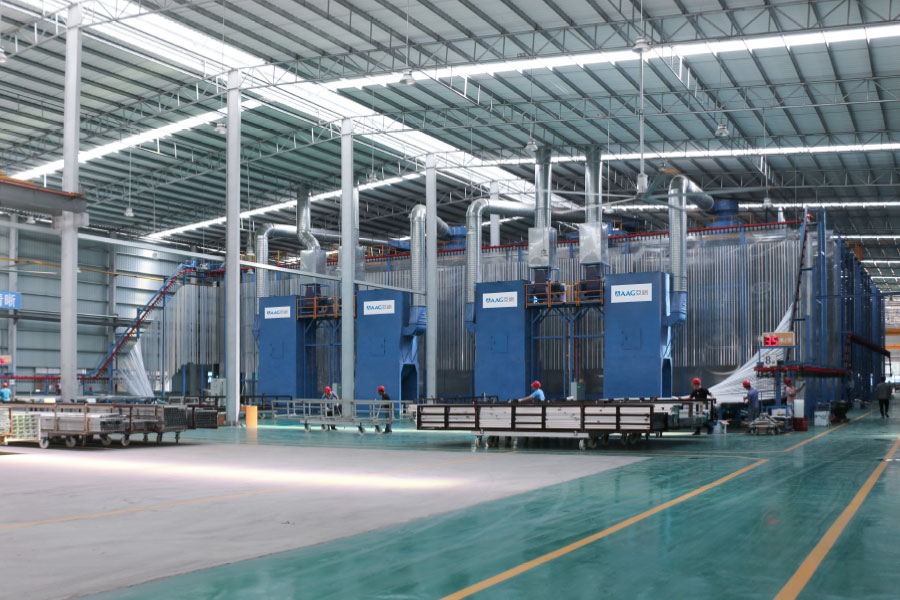

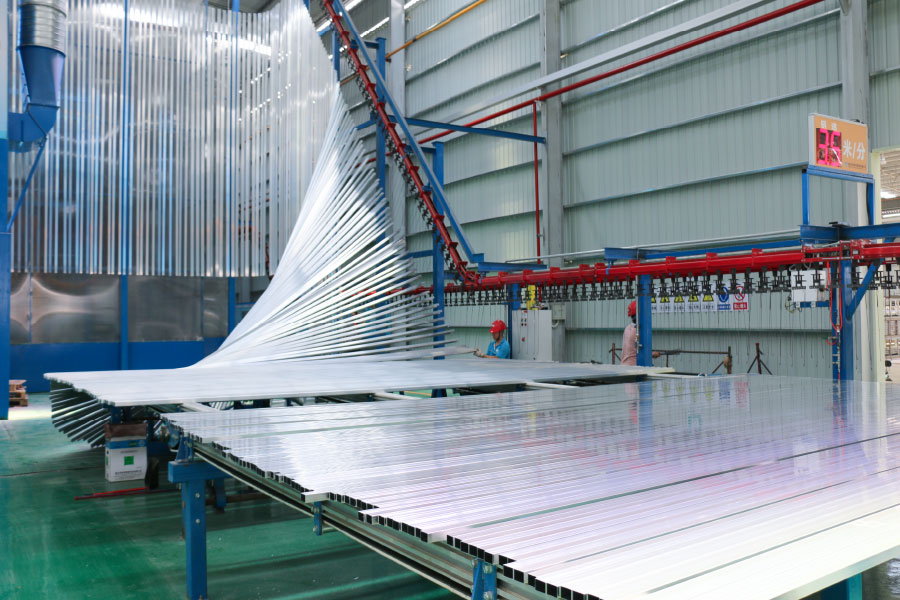

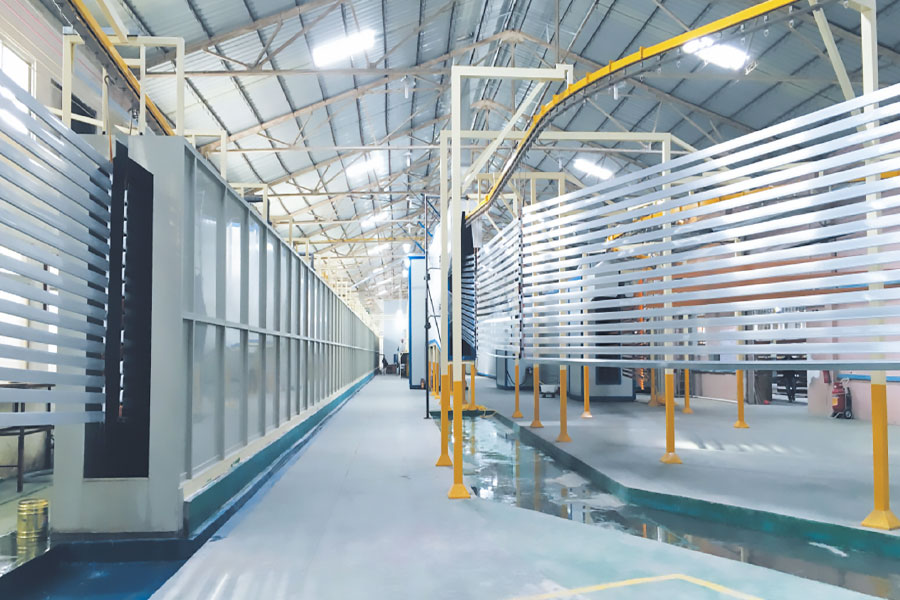

粉末喷涂生产线
High-speed electrostatic powder coatings line

粉末喷涂生产线是一种用于在工件表面形成高质量粉末涂层的自动化生产线,利用静电吸附的原理,将粉末均匀地吸附在工件表面,经高温固化在工件表面形成致密的表面涂层。具有环保节能、高效生产、涂层性能优异等特点。广泛应用于工业工程机械、建筑材料、铝型材、家电、钢结构、电子电气、五金、汽车零部件等领域。

Powder Coatings production line is an automated system designed to create high-quality powder coatingss on workpiece surfaces. Utilizing the principle of electrostatic adsorption, the powder is evenly attracted to the surface and then cured at high temperatures to form a dense coating layer. This process is environmentally friendly, energy-efficient, and highly productive, offering superior coating performance. It is widely used in industrial engineering machinery, construction materials, aluminum profiles, home appliances, steel structures, electronics and electrical components, hardware, and automotive parts.

产品名称
Production Line
基材种类
Substrate Type
工艺速度(m/min)
Process Speed
基材厚度(mm)
Substrate Thickness
基材宽度(mm)
Substrate Width
产线长度(m)
Production Line Length
能源介质
Energy Medium
工艺流程
Process Flow
立式涂装生产线
Vertical coating line
铝型材/镀锌型材/冷轧热轧型材
Aluminum profiles, Galvanized profiles, Cold/Hot-rolled profiles
2.0-5.0
0.3-8
H≦8000W≦200L≦400
60
水/电/燃气
Water/Electricity/Gas
上件→前处理(水洗1→预脱脂→主脱脂1→主脱脂2→水洗2→水洗3→纯水洗1→钝化→纯水洗2)→滴水→烘干→冷却→粉末喷涂(人工+自动)→固化→冷却→下件→包装
loading→pretreatment (rinsing 1→pre-degreasing→main degreasing 1→main degreasing 2→rinsing 2→rinsing 3→pure rinsing 1→passivation→pure rinsing 2)→dripping→drying→cooling→powder spraying (manual+automatic)→curing→cooling→unloading→packaging
卧式涂装生产线
Horizontal coating line
铝型材/镀锌型材/冷轧热轧型材
Aluminum profiles, Galvanized profiles, Cold/Hot-rolled profiles
2.0-5.0
0.3-8
H≦8000W≦200L≦400
120
水/电/燃气
Water/Electricity/Gas
上件→前处理(水洗1→预脱脂→主脱脂1→主脱脂2→水洗2→水洗3→纯水洗1→钝化→纯水洗2)→滴水→烘干→冷却→粉末喷涂(人工+自动)→固化→冷却→下件→包装
loading→pretreatment (rinsing 1→pre-degreasing→main degreasing 1→main degreasing 2→rinsing 2→rinsing 3→pure rinsing 1→passivation→pure rinsing 2)→dripping→drying→cooling→powder spraying (manual+automatic)→curing→cooling→unloading→packaging
