金属卷材/片材
Metal Coil / Sheet

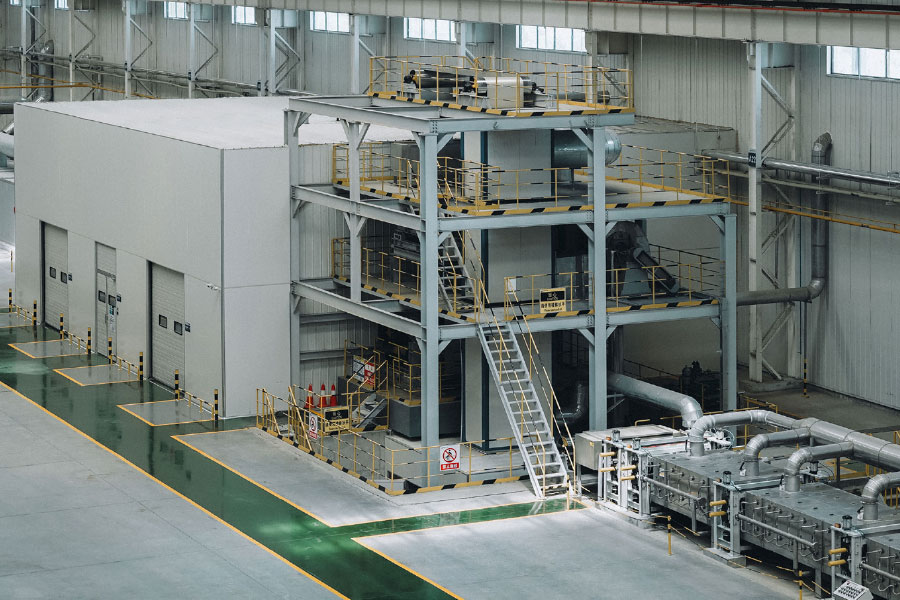

高速静电粉末涂装线
High-speed electrostatic powder coatings line

高速粉末涂装线是公司主要核心技术之一，是将高性能粉末涂料取代油漆作为涂层，利用静电吸附的原理将粉末均匀吸附在基材表面，经高温熔融后形成高性能涂层。该技术完全革新了传统彩涂板生产方式，整体节能30%以上，涂层以硬度高、防腐性好、优异的加工性能广泛应用于建筑、装饰、家电等领域。

The high-speed powder coatings line is one of the company's core technologies. It replaces traditional paint with high-performance powder coatings as the coating material, using the principle of electrostatic adsorption to evenly adhere the powder to the substrate surface. After high-temperature melting, it forms a high-performance coating. This technology has completely revolutionized the traditional production method of color-coated sheets, achieving overall energy savings of more than 30%. With its high hardness, excellent corrosion resistance, and superior processing performance, the coating is widely used in construction, decoration, home appliances, and other fields.

钢板金属卷材/片材
Metal Coil / Sheet
产品名称
Production Line
基材种类
Substrate Type
工艺速度(m/min)
Process Speed
基材厚度(mm)
Substrate Thickness
基材宽度(mm)
Substrate Width
产线长度(m)
Production Line Length
能源介质
Energy Medium
工艺流程
Process Flow
单面喷涂粉末彩涂线
Single-sided powder coatings line
镀锌/铝锌/锌铝镁、冷轧、不锈钢
Galvanized/Aluminum-zinc/Zinc-aluminum-magnesium, Cold-rolled, Stainless steel
20-120
1.0-2.0
700-1650
50-150
水/电/燃气
Water/Electricity/Gas
开卷→铆接→活套→脱脂清洗→钝化→粉末静电涂装→烘烤固化→冷却→活套→剪切→收卷
uncoiling→riveting→looper→degreasing and cleaning→passivation→powder electrostatic coating→baking and curing→cooling→looper→shearing→recoiling
双面喷涂粉末彩涂线
Double-sided powder coatings line
镀锌/铝锌/锌铝镁、冷轧、不锈钢
Galvanized/Aluminum-zinc/Zinc-aluminum-magnesium, Cold-rolled, Stainless steel
20-120
1.0-2.0
700-1650
70-200
水/电/燃气
Water/Electricity/Gas
开卷→铆接→活套→脱脂清洗→钝化→粉末静电涂装→烘烤固化→冷却→活套→剪切→收卷
uncoiling→riveting→looper→degreasing and cleaning→passivation→powder electrostatic coating→baking and curing→cooling→looper→shearing→recoiling
单面喷背面覆膜彩涂线
Single-sided coating with back film lamination line
镀锌/铝锌/锌铝镁、冷轧、不锈钢
Galvanized/Aluminum-zinc/Zinc-aluminum-magnesium, Cold-rolled, Stainless steel
20-120
1.0-2.0
700-1650
70-200
水/电/燃气
Water/Electricity/Gas
开卷→铆接→活套→脱脂清洗→钝化→粉末静电涂装→烘烤固化→背覆膜→冷却→活套→剪切→收卷
uncoiling→riveting→looper→degreasing and cleaning→passivation→powder electrostatic coating→baking and curing→back lamination→cooling→looper→shearing→recoiling
单面喷背面油漆彩涂线
Single-sided coating with back paint line
镀锌/铝锌/锌铝镁、冷轧、不锈钢
Galvanized/Aluminum-zinc/Zinc-aluminum-magnesium, Cold-rolled, Stainless steel
20-120
1.0-2.0
700-1650
100-200
水/电/燃气
Water/Electricity/Gas
开卷→铆接→活套→脱脂清洗→钝化→粉末静电涂装→烘烤固化→油漆→烘烤→冷却→活套→剪切→收卷
uncoiling→riveting→looper→degreasing and cleaning→passivation→powder electrostatic coating→baking and curing→painting→baking→cooling→looper→shearing→recoiling
铝板金属卷材/片材
Metal Coil / Sheet
产品名称
Production Line
基材种类
Substrate Type
工艺速度(m/min)
Process Speed
基材厚度(mm)
Substrate Thickness
基材宽度(mm)
Substrate Width
产线长度(m)
Production Line Length
能源介质
Energy Medium
工艺流程
Process Flow
单面喷涂粉末彩涂线
Single-sided powder coatings line
铝板
Aluminum sheet
20-120
0.1-3.0
600-2650
50-150
水/电/燃气
Water/Electricity/Gas
开卷→铆接→活套→脱脂清洗→钝化→粉末静电涂装→烘烤固化→冷却→活套→剪切→收卷
uncoiling→riveting→looper→degreasing and cleaning→passivation→powder electrostatic coating→baking and curing→cooling→looper→shearing→recoiling
双面喷涂粉末彩涂线
Double-sided powder coatings line
铝板
Aluminum sheet
20-120
0.1-3.0
600-2650
70-200
水/电/燃气
Water/Electricity/Gas
开卷→铆接→活套→脱脂清洗→钝化→粉末静电涂装→烘烤固化→冷却→活套→剪切→收卷
uncoiling→riveting→looper→degreasing and cleaning→passivation→powder electrostatic coating→baking and curing→cooling→looper→shearing→recoiling
单面喷背面覆膜彩涂线
Single-sided coating with back film lamination line
铝板
Aluminum sheet
20-120
0.1-3.0
600-2650
70-200
水/电/燃气
Water/Electricity/Gas
开卷→铆接→活套→脱脂清洗→钝化→粉末静电涂装→烘烤固化→背覆膜→冷却→活套→剪切→收卷
uncoiling→riveting→looper→degreasing and cleaning→passivation→powder electrostatic coating→baking and curing→back lamination→cooling→looper→shearing→recoiling
单面喷背面油漆彩涂线
Single-sided coating with back paint line
铝板
Aluminum sheet
20-120
0.1-3.0
600-2650
70-200
水/电/燃气
Water/Electricity/Gas
开卷→铆接→活套→脱脂清洗→钝化→粉末静电涂装→烘烤固化→油漆→烘烤→冷却→活套→剪切→收卷
uncoiling→riveting→looper→degreasing and cleaning→passivation→powder electrostatic coating→baking and curing→painting→baking→cooling→looper→shearing→recoiling

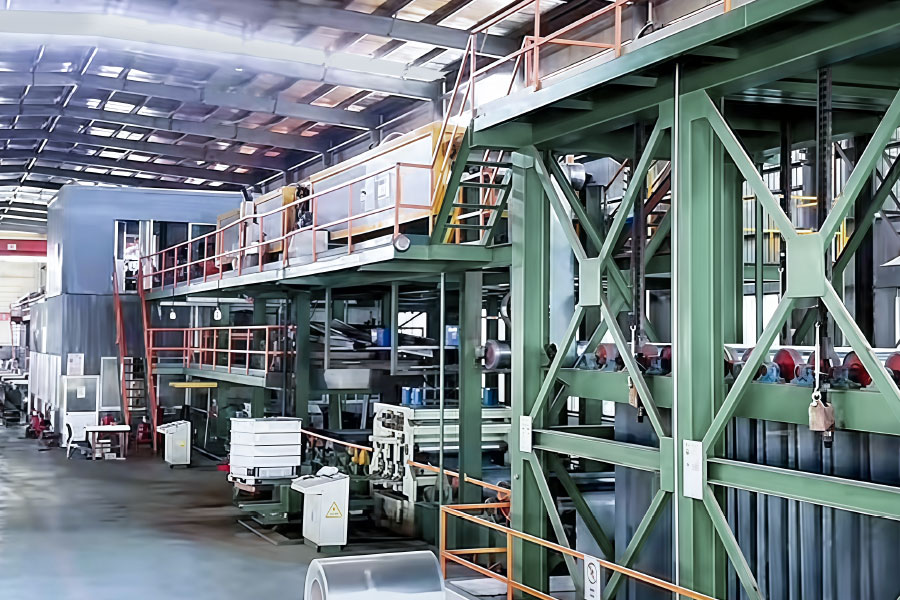

油漆彩涂线
Color coating production line

彩涂生产线是一种用于将金属卷材，如钢板、铝板、不锈钢板等表面涂覆各种颜色或不同性能涂层的自动化生产线。产品具有良好的耐腐蚀性、装饰性，广泛应用于建筑、家电等领域。

Color coating production line is an automated production line used for applying various colors or performance coatings to metal coils, such as steel sheets, aluminum sheets, and stainless steel sheets. The finished products offer excellent corrosion resistance and decorative properties, making them widely used in construction, home appliances, and other fields.

产品名称
Production Line
基材种类
Substrate Type
工艺速度(m/min)
Process Speed
基材厚度(mm)
Substrate Thickness
基材宽度(mm)
Substrate Width
产线长度(m)
Production Line Length
能源介质
Energy Medium
工艺流程
Process Flow
家电板彩涂生产线
Pre-painted coil production line for home appliances
镀锌/铝锌/锌铝镁/不锈钢
Galvanized/Aluminum-zinc/Zinc-aluminum-magnesium/Stainless steel
20-120
0.3-1.5
700-1650
100-200
水/电/燃气
Water/Electricity/Gas
开卷→切头→铆接→压毛刺→入口活套→碱洗→刷洗→热水漂洗→调节槽→热水漂洗→吹干→化学处理→烘干→冷却→初涂涂层→初涂烘烤固化→初涂冷却→吹干→精涂涂层→精涂烘烤固化→精涂冷却→吹干→出口活套→质量检验→分切→卷取→包装入库
uncoiling→head cutting→riveting→deburring→entry looper→alkaline washing→brushing→hot water rinsing→conditioning tank→hot water rinsing→drying→chemical treatment→drying→cooling→primer coating→primer baking and curing→primer cooling→drying→finish coating→finish baking and curing→finish cooling→drying→exit looper→quality inspection→slitting→recoiling→packaging and storage
建筑板彩涂生产线
Pre-painted coil production line for construction panels
镀锌/铝锌/锌铝镁/不锈钢
Galvanized/Aluminum-zinc/Zinc-aluminum-magnesium/Stainless steel
20-250
0.1-1.2
700-1650
70-200
水/电/燃气
Water/Electricity/Gas
开卷→切头→铆接→压毛刺→入口活套→碱洗→刷洗→热水漂洗→调节槽→热水漂洗→吹干→化学处理→烘干→冷却→初涂涂层→初涂烘烤固化→初涂冷却→吹干→精涂涂层→精涂烘烤固化→精涂冷却→吹干→出口活套→质量检验→分切→卷取→包装入库
uncoiling→head cutting→riveting→deburring→entry looper→alkaline washing→brushing→hot water rinsing→conditioning tank→hot water rinsing→drying→chemical treatment→drying→cooling→primer coating→primer baking and curing→primer cooling→drying→finish coating→finish baking and curing→finish cooling→drying→exit looper→quality inspection→slitting→recoiling→packaging and storage

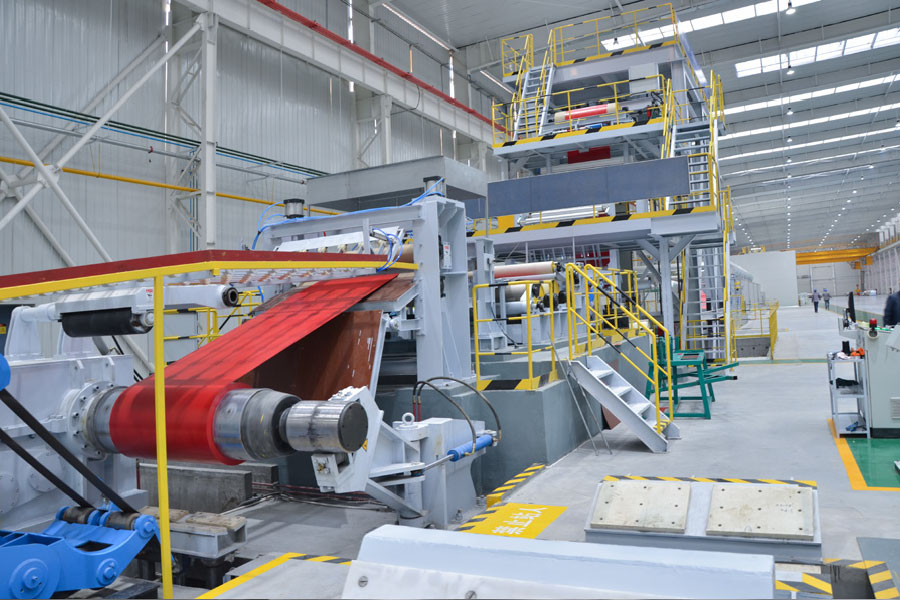

清洗线
Cleaning line

清洗线是通过碱性、酸性溶液或表面活性剂清除板带表面油脂及其他污染物的自动化生产线。

Cleaning line is an automated production line that removes grease and other contaminants from the surface of strip metal using alkaline, acidic solutions, or surfactants.

产品名称
Production Line
基材种类
Substrate Type
工艺速度(m/min)
Process Speed
基材厚度(mm)
Substrate Thickness
基材宽度(mm)
Substrate Width
产线长度(m)
Production Line Length
能源介质
Energy Medium
工艺流程
Process Flow
清洗线
Cleaning line
镀锌/铝/不锈钢
Galvanized/Aluminum/Stainless steel
20-250
0.1-3.0
700-1650
50-200
水/电/燃气
Water/Electricity/Gas
开卷→夹送→多辊矫直→剪切→二辊夹送→焊接→张紧→化学脱脂→辊刷→电解脱脂→多级水洗→热风干燥→张紧→剪切→收卷
uncoiling→pinch feeding→multi-roll leveling→shearing→two-roll pinch feeding→welding→tensioning→chemical degreasing→roller brushing→electrolytic degreasing→multi-stage rinsing→hot air drying→tensioning→shearing→recoiling

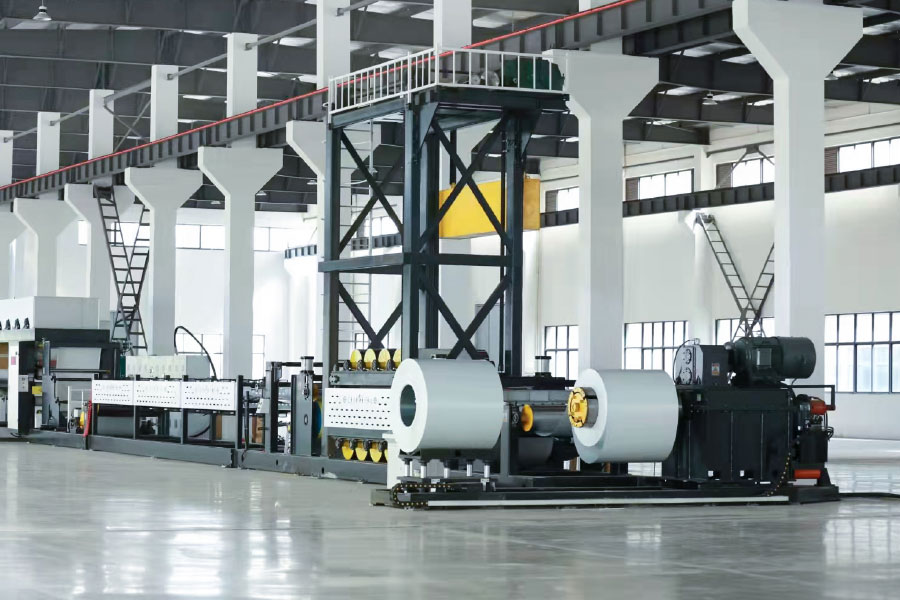

覆膜生产线/双金属复合线
Lamination production line / Bimetal composite line

覆膜生产线是将镀锌板、镀铝锌或锌铝镁钢板通过高温高压或涂胶工艺在其表面复合一层高分子膜，产品具有表面多样化、防腐、隔热等特点。广泛应用于建筑、家电、装饰等领域。
双金属复合线是结合了两种或者多种金属的不同特性将其复合，复合后的产品性价比极高，且拥有耐磨、耐腐蚀、隔音、强度高、韧性好等特点。广泛应用于建筑、装饰、电梯等领域。

Lamination production line applies a polymer film to the surface of galvanized, aluminum-zinc, or zinc-aluminum-magnesium steel sheets through high-temperature and high-pressure processes or adhesive coating technology. The finished products feature diverse surface designs, corrosion resistance, and thermal insulation properties, making them widely used in construction, home appliances, and decoration industries.
Bimetal composite line integrates the unique properties of two or more metals, creating a highly cost-effective composite material. The final product offers excellent wear resistance, corrosion resistance, sound insulation, high strength, and good toughness. It is widely used in construction, decoration, and elevator industries.

产品名称
Production Line
基材种类
Substrate Type
工艺速度(m/min)
Process Speed
基材厚度(mm)
Substrate Thickness
基材宽度(mm)
Substrate Width
产线长度(m)
Production Line Length
能源介质
Energy Medium
工艺流程
Process Flow
屋面瓦金属覆膜生产线
Metal roofing tile lamination production line
镀锌/铝/不锈钢
Galvanized sheet/Aluminum sheet/Stainless steel
20-100
0.1-1.5
600-1500
25-80
水/电/燃气
Water/Electricity/Gas
开卷→铆接→张力辊→活套→张力辊→2#主加热区→正反面复合→正反面压花→冷却→修边→张力辊→3#储料架→张力辊→4#保护膜→剪切→收卷
unwinding→riveting→tension roller→looper→tension roller→no.2 main heating zone→front and back composite→front and back embossing→cooling→trimming→tension roller→no.3 accumulator→tension roller→no.4 protective film→shearing→recoiling
装饰板覆膜生产线
Decorative panel lamination production line
镀锌/铝/不锈钢
Galvanized sheet/Aluminum sheet/Stainless steel
10-50
0.1-3.0
600-1500
40-100
水/电/燃气
Water/Electricity/Gas
开卷→铆接→张力辊→表面毛化→碱洗→水洗→烘干→钝化→烘干→涂胶→烘箱→覆膜→冷却→修边→保护膜→剪切→收卷
unwinding→riveting machine→tension roller→surface texturing→alkaline washing→rinsing→drying→passivation→drying→adhesive coating→oven→lamination→cooling→trimming→protective film→shearing→recoiling
双金属复合生产线
Bimetal composite production line
镀锌/铝/不锈钢
Galvanized sheet/Aluminum sheet/Stainless steel
5/40
0.1-2.0
600-1500
60-120
水/电/燃气
Water/Electricity/Gas
开卷→铆接→剪板机→张力辊→活套→张力辊→毛化→水洗→辊涂胶→烘箱→复合→冷却→张力辊→活套→张力辊→保护膜→剪板机→收卷
unwinding→riveting→shearing machine→tension roller→looper→tension roller→texturing→rinsing→roller coating adhesive→oven→compositing→cooling→tension roller→looper→tension roller→protective film→shearing machine→recoiling

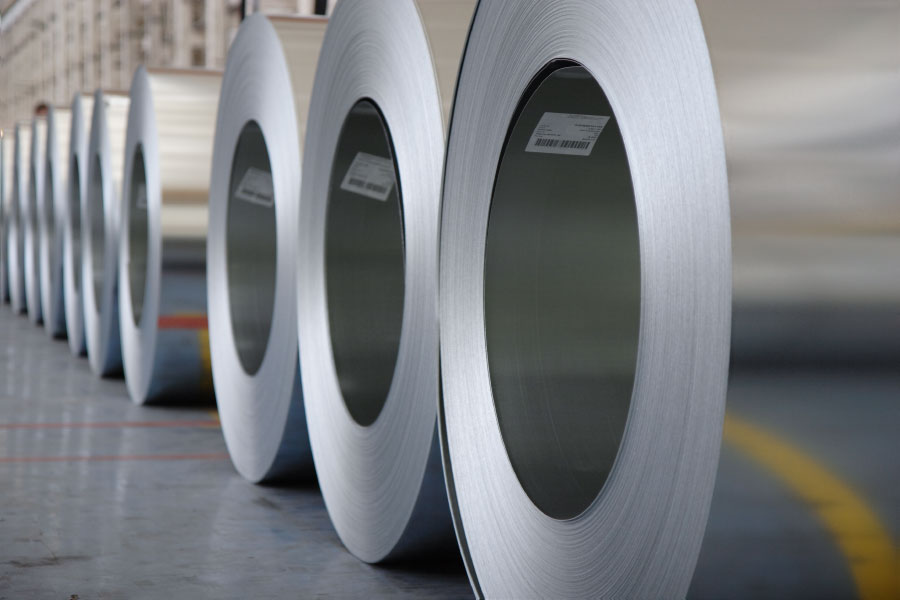

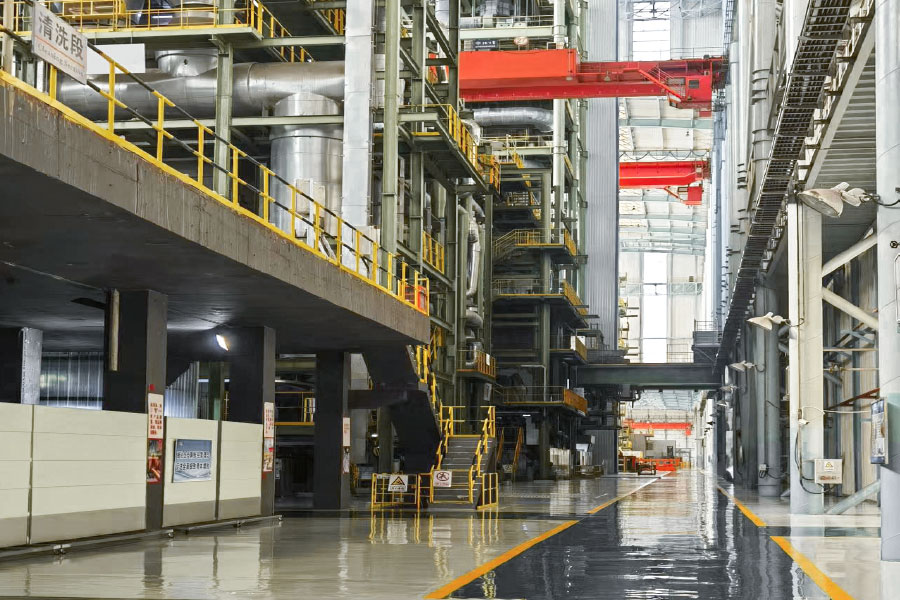

热镀锌、镀铝锌、镀锌铝镁生产线
Hot-dip galvanizing, aluminum-zinc, and zinc-aluminum-magnesium production line

热镀锌、镀铝锌、镀锌铝镁是在带钢表面通过热浸镀方式覆盖一层锌或铝锌、铝镁合金，具有较强的阴极保护性。
镀锌板因其良好的防腐蚀性已经广泛用于建筑彩钢板基材、家电、装饰、机柜、防火门等行业。

Hot-dip galvanizing, aluminum-zinc, and zinc-aluminum-magnesium coating processes apply a layer of zinc or aluminum-zinc, aluminum-magnesium alloy to the surface of strip steel through hot-dip plating, providing strong cathodic protection.
Due to its excellent corrosion resistance, galvanized steel has been widely used as a substrate for color-coated steel in construction, as well as in home appliances, decoration, cabinets, and fire doors.

产品名称
Production Line
基材种类
Substrate Type
工艺速度(m/min)
Process Speed
基材厚度(mm)
Substrate Thickness
基材宽度(mm)
Substrate Width
镀层厚度(g/m²‌)
Coating Thickness
能源介质
Energy Medium
工艺流程
Process Flow
热镀锌生产线
Hot-dip galvanizing line
冷轧普碳钢/低合金钢卷
Cold-rolled plain carbon steel/Low-alloy steel coil
50-260
0.12-4.5
300-1600
40-120
水/电/燃气/蒸汽
Water/Electricity/Gas/Steam
开卷→剪切→焊接→活套→脱脂清洗→烘干→退火→镀锌(镀铝锌、锌铝镁)→冷却→光整→拉矫→钝化或耐指纹→烘干→活套→涂油→剪切→收卷
uncoiling→shearing→welding→looper→degreasing and cleaning→drying→annealing→galvanizing(aluminum-zinc coating, zinc-aluminum-magnesium coating)→cooling→skin passing→tension leveling→passivation or anti-fingerprint treatment→drying→looper→oil coating→shearing→recoiling
热镀铝锌硅生产线
Hot-dip galvalume line
冷轧普碳钢/低合金钢卷
Cold-rolled plain carbon steel/Low-alloy steel coil
50-220
0.12-2.0
300-1600
40-120
水/电/燃气/蒸汽
Water/Electricity/Gas/Steam
开卷→剪切→焊接→活套→脱脂清洗→烘干→退火→镀锌(镀铝锌、锌铝镁)→冷却→光整→拉矫→钝化或耐指纹→烘干→活套→涂油→剪切→收卷
uncoiling→shearing→welding→looper→degreasing and cleaning→drying→annealing→galvanizing(aluminum-zinc coating, zinc-aluminum-magnesium coating)→cooling→skin passing→tension leveling→passivation or anti-fingerprint treatment→drying→looper→oil coating→shearing→recoiling
热镀锌铝镁生产线
Hot-dip ZAM Line
冷轧普碳钢/低合金钢卷
Cold-rolled plain carbon steel/Low-alloy steel coil
50-220
0.3-4.5
300-1600
40-275
水/电/燃气/蒸汽
Water/Electricity/Gas/Steam
开卷→剪切→焊接→活套→脱脂清洗→烘干→退火→镀锌(镀铝锌、锌铝镁)→冷却→光整→拉矫→钝化或耐指纹→烘干→活套→涂油→剪切→收卷
uncoiling→shearing→welding→looper→degreasing and cleaning→drying→annealing→galvanizing(aluminum-zinc coating, zinc-aluminum-magnesium coating)→cooling→skin passing→tension leveling→passivation or anti-fingerprint treatment→drying→looper→oil coating→shearing→recoiling
电镀锡生产线
Electrogalvanizing tin line
MR类/D类/L类镀锡原板
MR type/D type/L type tinplate substrate
100-450
0.15-0.5
600-1200
1.1-11.2
水/电/燃气/蒸汽
Water/Electricity/Gas/Steam
开卷→剪切→焊接→活套→化学脱脂→电解脱脂→水洗→电解酸洗→水洗→电镀锡→水洗→烘干→软熔→淬水→电解钝化→水洗→烘干→涂油→活套→剪切→收卷
unwinding→shearing→welding→looper→chemical degreasing→electrolytic degreasing→rinsing→electrolytic pickling→rinsing→tin plating→rinsing and drying→soft annealing→quenching→electrolytic passivation→rinsing and drying→oil coating→looper→shearing→recoiling
